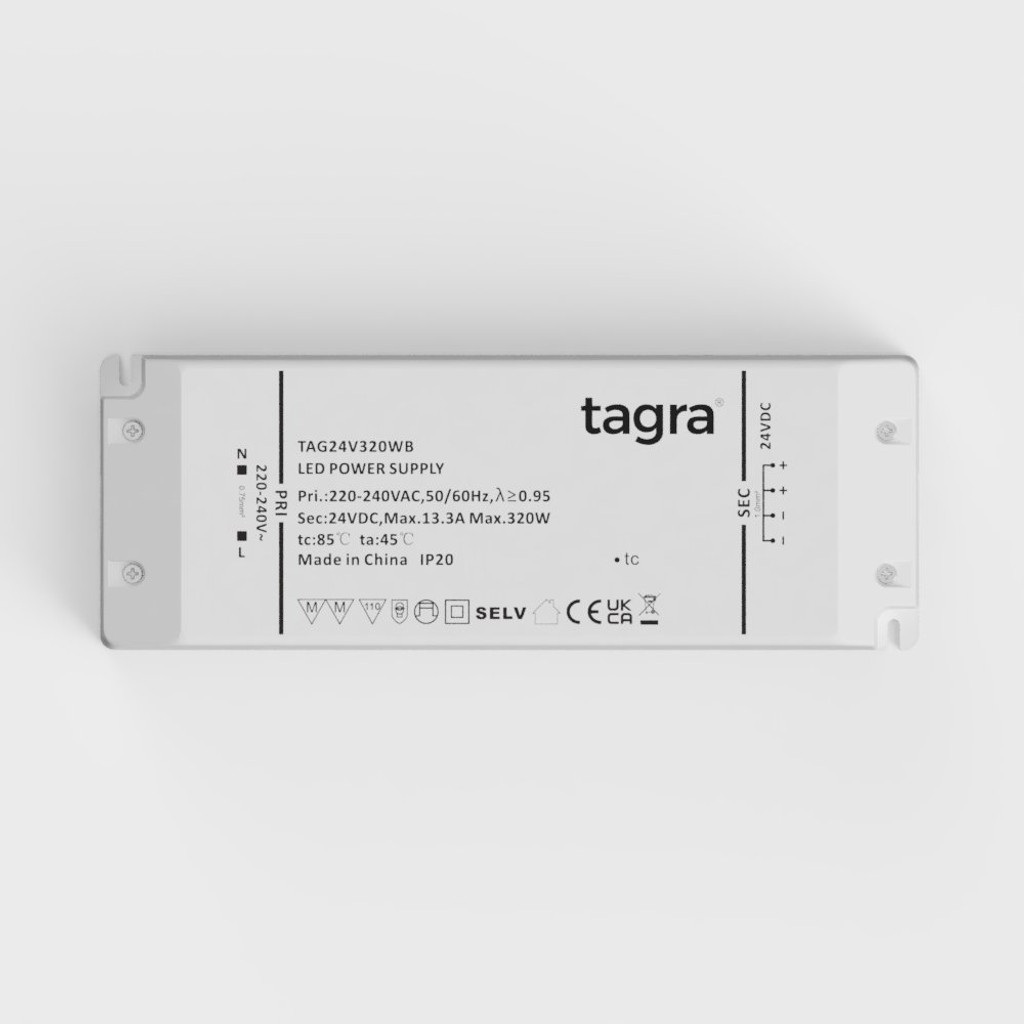

Product Overview
Specifications:
Output Voltage: 24V DC
Output Current: 13.3A
Rated Power: 320W
Efficiency: 93.5%
Power Factor: 0.95
Dimmable: No
Water Resistance: IP20
Dimensions (mm): 215L x 77.5W x 35H
Warranty: 5 Years
Information:
Introducing our Professional range of LED Power Supplies. This product is designed for demanding installations and is manufactured from high quality materials and components to produce a reliable and efficient LED Driver. Featuring built-in protection and protective terminal covers, it’s the prefect solution for any installation.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard.
Installation:
Available in IP20 making it suitable for indoor installation. Designed to be connected to a mains power supply (220-240V AC). Can be mounted to a surface using the fixing points located on the product casing. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
220-240V AC Mains Power Supply
24V LED Strip Light
24V Compatible LED Controller
Product Specification
Warranty (Years) 5
Body Material Plastic
Ingress Protection (IP) 20
Input Current Type (A) AC
Input Voltage Min. – Max (V) 220-240V
Depth (mm) 215
Output Current Max. (A) 13.3
Output Current Type DC
Output Terminal / Connector Type SCREW
Over Current Protection Yes
Over Temperature Protection Yes
Over Voltage Protection Yes
Short Circuit Protection Yes
Brand Tagra
Family Name Tagra Drivers
Certification EMC – 2014/30/EU
Wattage (W) 320
Body Colour White
Output Voltage Min. – Max. (V) 24-24V
Product Height (mm) 35
Product Weight (g) 800
Width (mm) 78
Dimensions LxWxH (mm) 215x78x35
